2003 Cessna Citation Excel
Inquire for price Serial Number: 560-5324 Tail Number: N504UPKey Features
- New Paint & Interior Refurbishment - September 2023
- Equipped with WAAS/LPV
- Engines Enrolled on ESP Silver
- APU Enrolled on MSP
- GoGo ATG-5000 High Speed Internet
Cabin
- Cabin Length
- 18.50 ft
- Cabin Height
- 5.70 ft
- Cabin Width
- 5.50 ft
- Passengers
- 8
- Cabin Zones
- 1
- Lavatory Locations

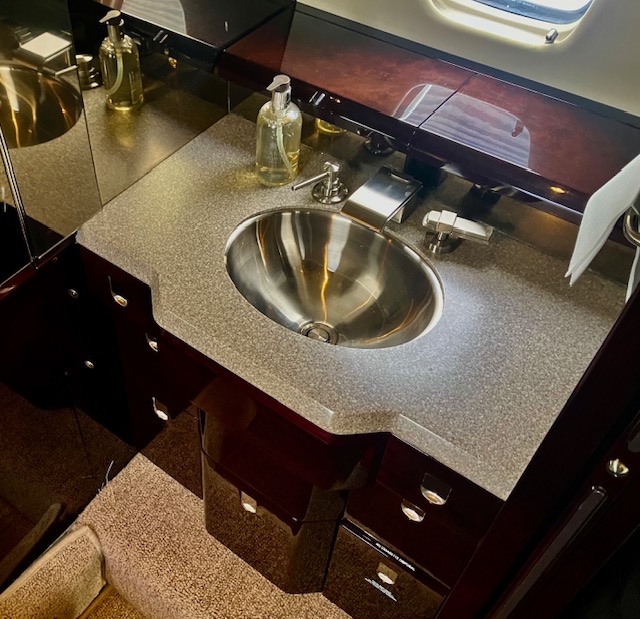

- Aft Fully Enclosed Belted Lavatory
- Galley Location
- Forward Cabin
- Forward Cabin

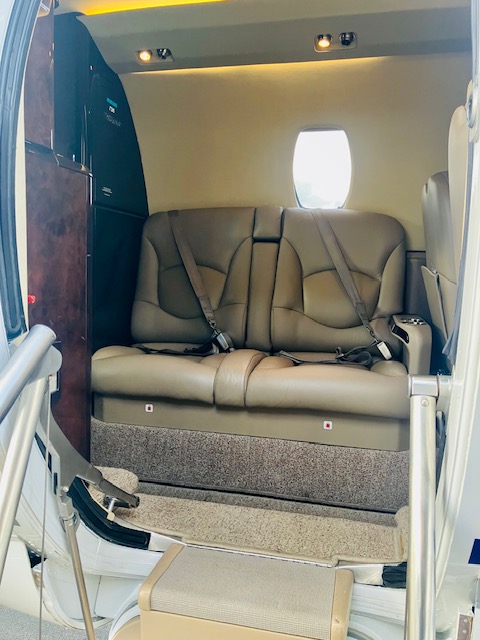

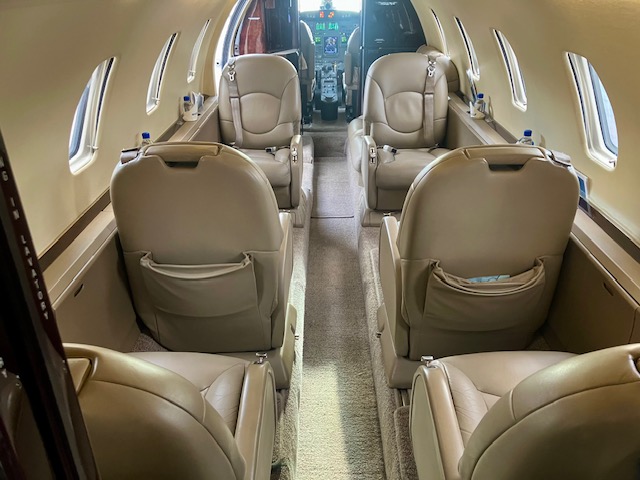

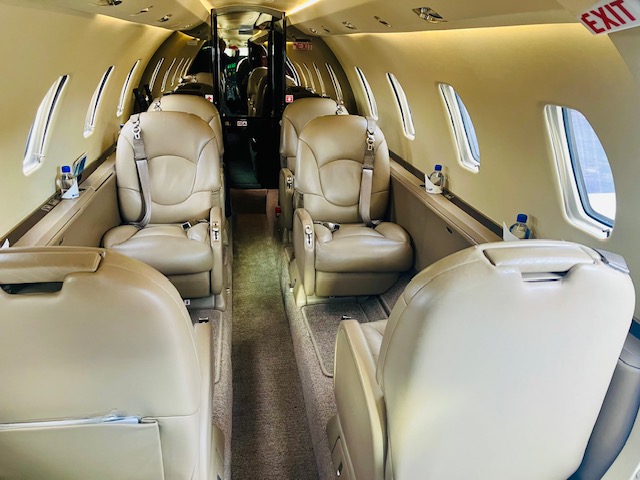

- 2 Place Divan Followed by 4 Place Club
- Aft Cabin
- 2 Forward Facing Seats
- Connectivity
- Aircell Gogo Biz® ATG-5000 Broadband Internet
- Last Refurbished
September 2023
Engines
Engine 1
- Make and Model
- Pratt & Whitney PW545A
- Engine Program
- ESP Silver
- Serial Number
- PCE-DB0661
- Engine Total Time Since New
- 14,692.4 hours
- Cycles Since New
- 10,577 cycles
Engine 2
- Make and Model
- Pratt & Whitney PW545A
- Engine Program
- ESP Gold
- Serial Number
- PCE-DB0673
- Engine Total Time Since New
- 13,984.2 hours
- Cycles Since New
- 10,054 cycles
APU
- Make and Model
- Honeywell RE-100(XL)
- APU Pay By The Hour Program
- MSP
- Total Time Since New
- P-383
- Serial Number
- 8,294.1 hours
Explore the places you can go.
- Total Range
- 1,786 Nautical Miles
Hold your finger down on the map below. Pinch in/out to zoom the map to see the nonstop range available with the 2003 Cessna Citation Excel.
Click & Drag the cursor below to see the nonstop range available with the 2003 Cessna Citation Excel.
These maximum range examples are based on typical cruise speed assuming ISA conditions, 85% statistical annual winds, and standard fuel reserves. The intent is range purposes only, not for actual flight planning. Actual performance is subject to day of flight conditions.
Specs
Download Spec Sheet- Total Time Since New
- 15,158.9 hours
- Total Landings Since New
- 10,916 landings
- Certificate of Airworthiness Date
- March 31st, 2003
- Home Base
- U.S.A.
- Maintenance Tracking
- CAMP
- Certification
- Part 135
- Current Tail Number
- N504UP
| Inspections | Last Performed | Next Due |
|---|---|---|
| Doc 11 (24 month) | Jun 2023 | Jun 2025 |
| Doc 6 (48 month) | Oct 2021 | Oct 2025 |
| Doc 12 (60 month) | Mar 2024 | Mar 2029 |
| Doc 13 (72 month) | Oct 2021 | Oct 2027 |
| Doc 16 (96 month) | Jun 2023 | Jun 2031 |
| Engine # 1 Overhaul (5,000 hours) | Mar 2018 | Due in 603.6 hrs |
| Engine # 2 Overhaul (5,000 hours) | Sep 2018 | Due in 1,401 hrs |
- System

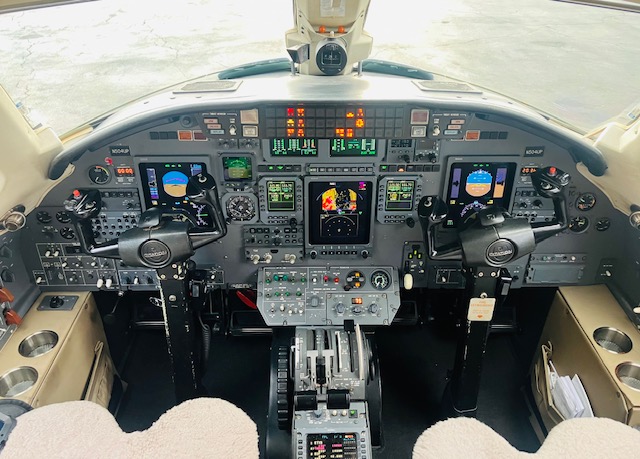

- Honeywell Primus 1000 Avionics Suite
| Type of Unit | Description |
|---|---|
| EFIS (Electronic Flight Instrument System) | Three Honeywell DU-870 Displays |
| FMS (Flight Management System) | Universal UNS-1Espw w/ WAAS/LPV |
| VHF COM (Very High Freq. Communications) | Dual Honeywell RCZ-833M |
| NAV (Navigation Radio) | Dual Honeywell RNZ-850 |
| Radio Altimeter | Honeywell RT-300 |
| HF COM (High Freq. Communications) | BendixKing KTR-953 |
| EGPWS (Enhanced Ground Proximity Warning System) | Honeywell MK V |
| TCAS (Traffic Collision Avoidance System) | BendixKing TPU-66A |
| CVR (Cockpit Voice Recorder) | L3 Harris FA2100 |
| ELT (Emergency Locator Transmitter) | Artex C406-2 |
Inquire
Specifications are provided for informational purposes only and do not constitute representations or warranties. These specifications are subject to buyer’s independent verification upon inspection. The aircraft is subject to prior sale, lease, and/or removal from the market without prior notice.
