Key Features
- Outstanding Pedigree, Two U.S. Owners Since New
- Engine Enrolled on ESP Gold Lite
- Extensive Garmin Upgrades, including Dual G600TXi Systems
- Executive 6 PAX Interior
- Delivered with Fresh Prop Overhaul and 120-Month Inspection
Cabin
- Cabin Length
- 16.90 ft
- Cabin Height
- 4.75 ft
- Cabin Width
- 5.00 ft
- Passengers
- 6
- Cabin Zones
- 1
- -

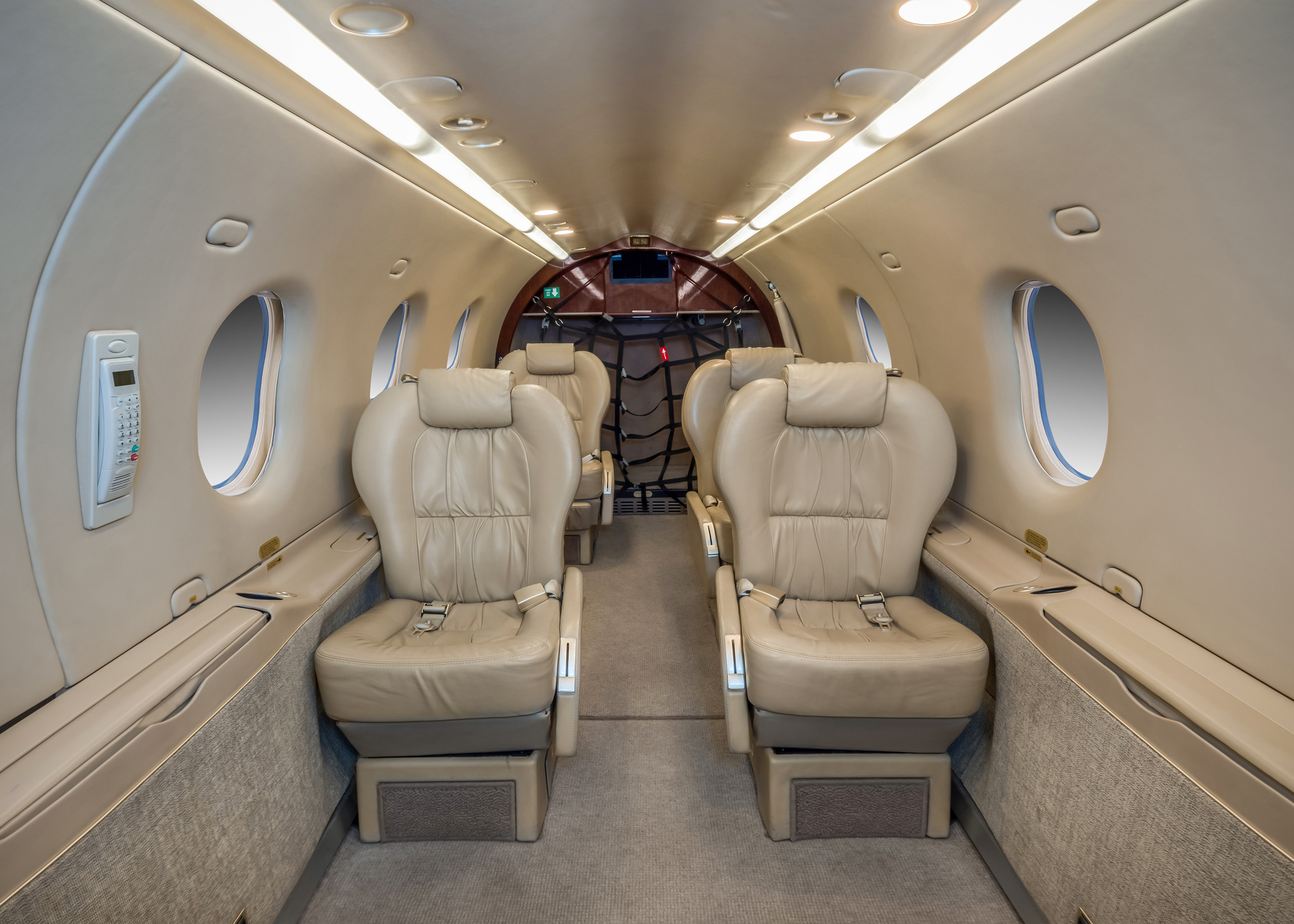

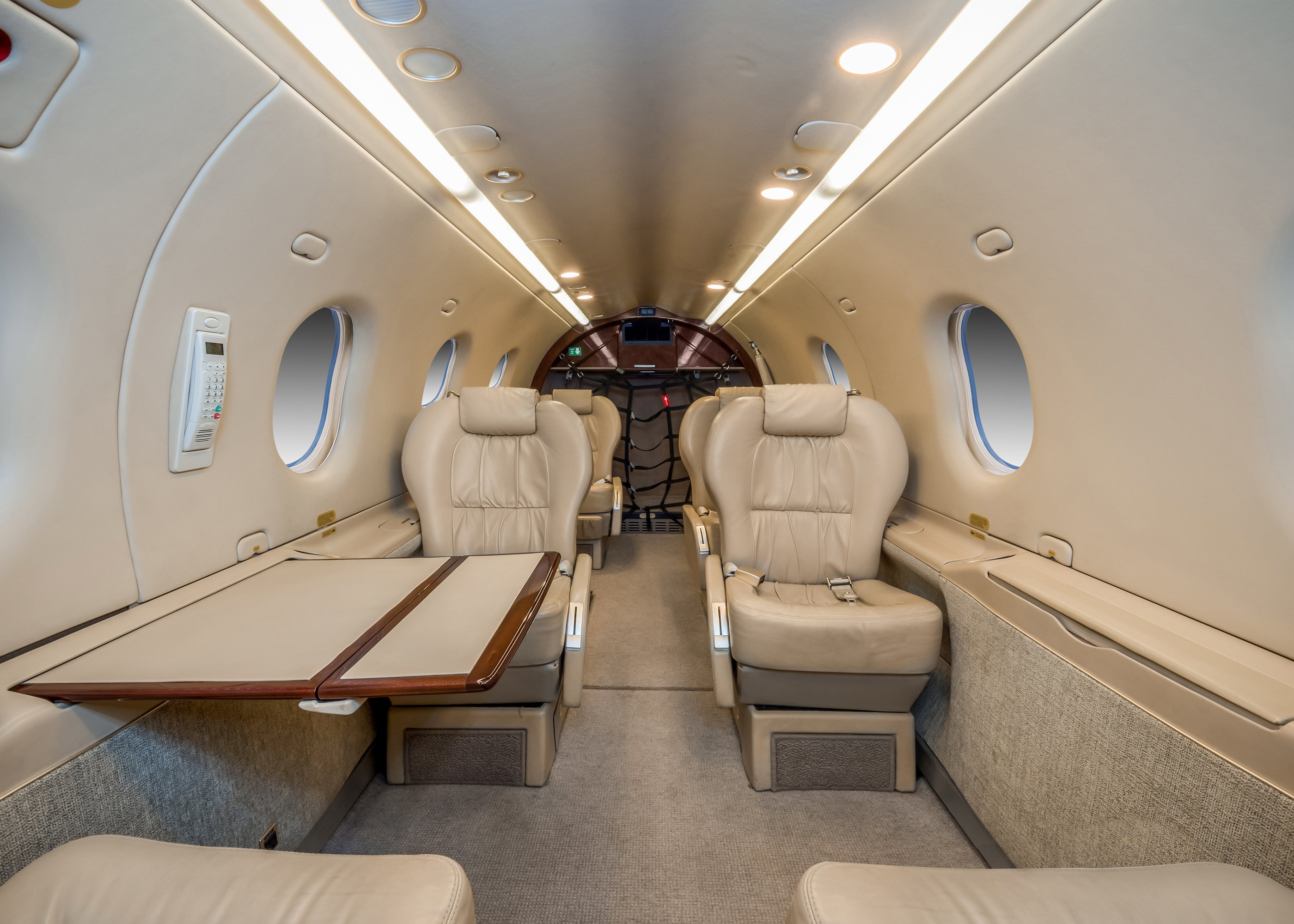

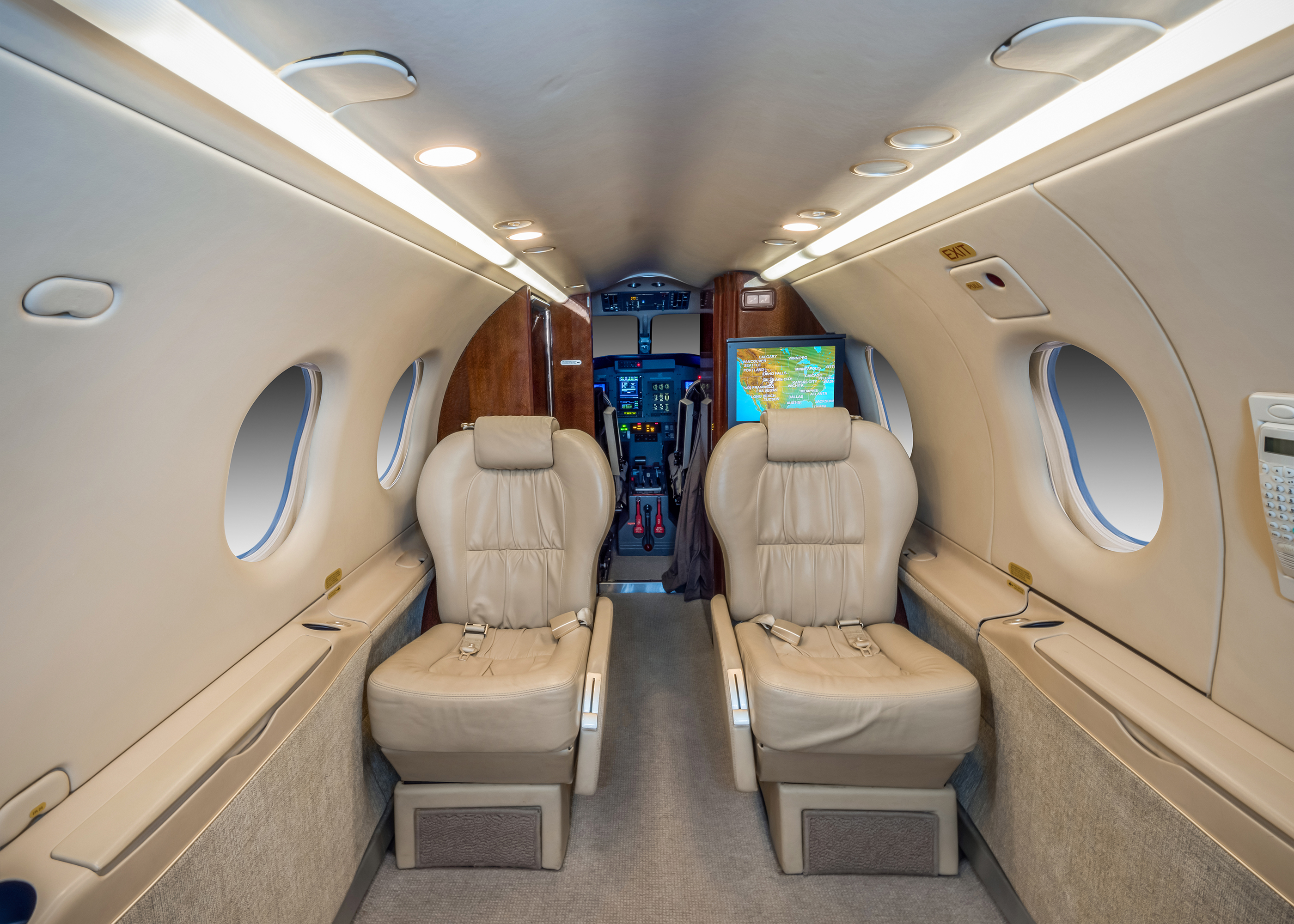

- Six (6) Executive Interior, Expandable to Eight (8) with the Addition of Two (2) Aft Commuter Seats (included)
- Connectivity

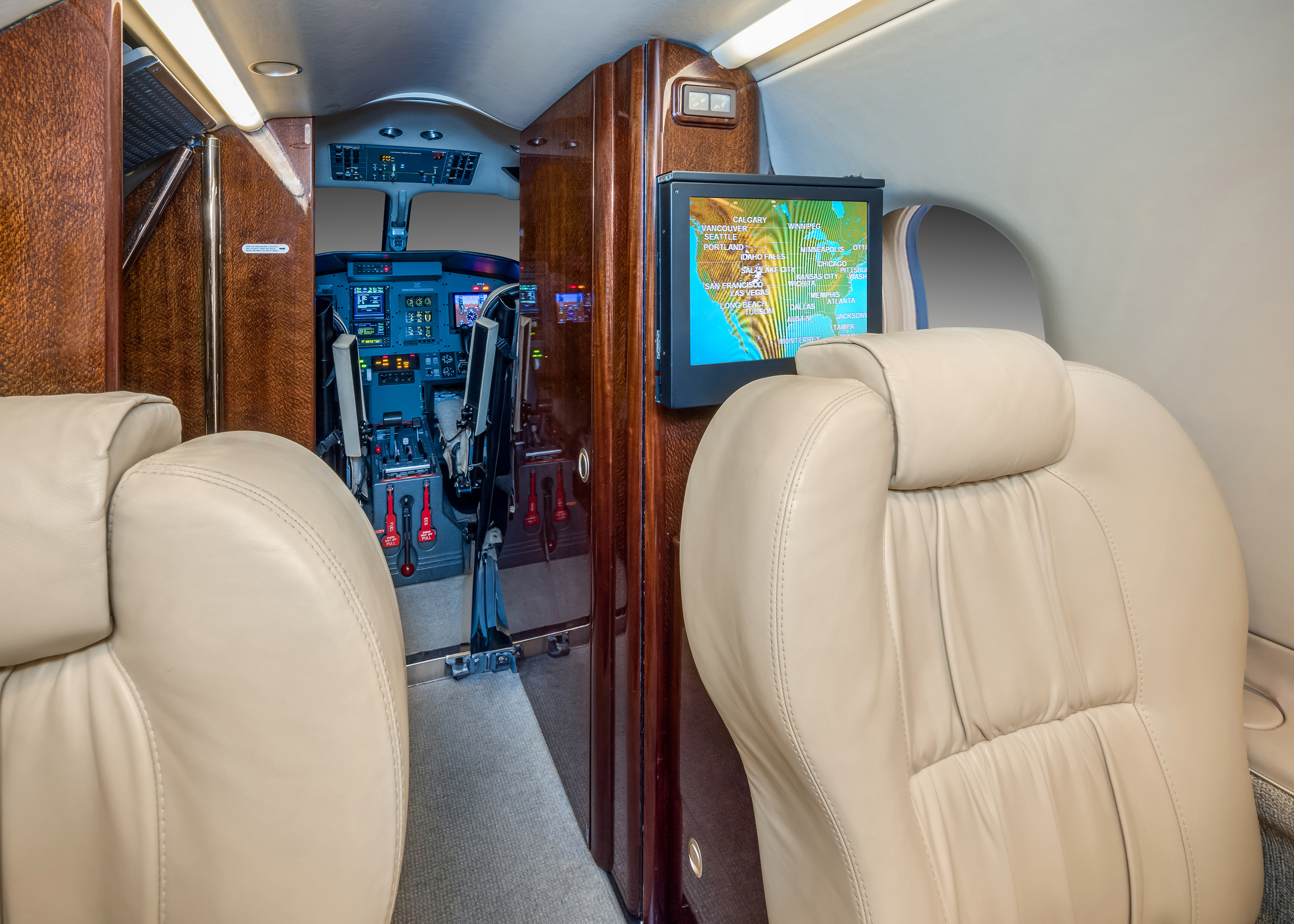

- Airshow Flight Tracking
- Last Refurbished
2016 at West Star GJT
Engines
Engine 1
- Make and Model
- Pratt & Whitney PT6A-67B
- Engine Program
- ESP Gold Lite
- Serial Number
- PCE-PR0483
- Engine Total Time Since New
- 4,590.1 hours
- Cycles Since New
- 3,439 cycles
Explore the places you can go.
- Total Range
- 1,340 Nautical Miles

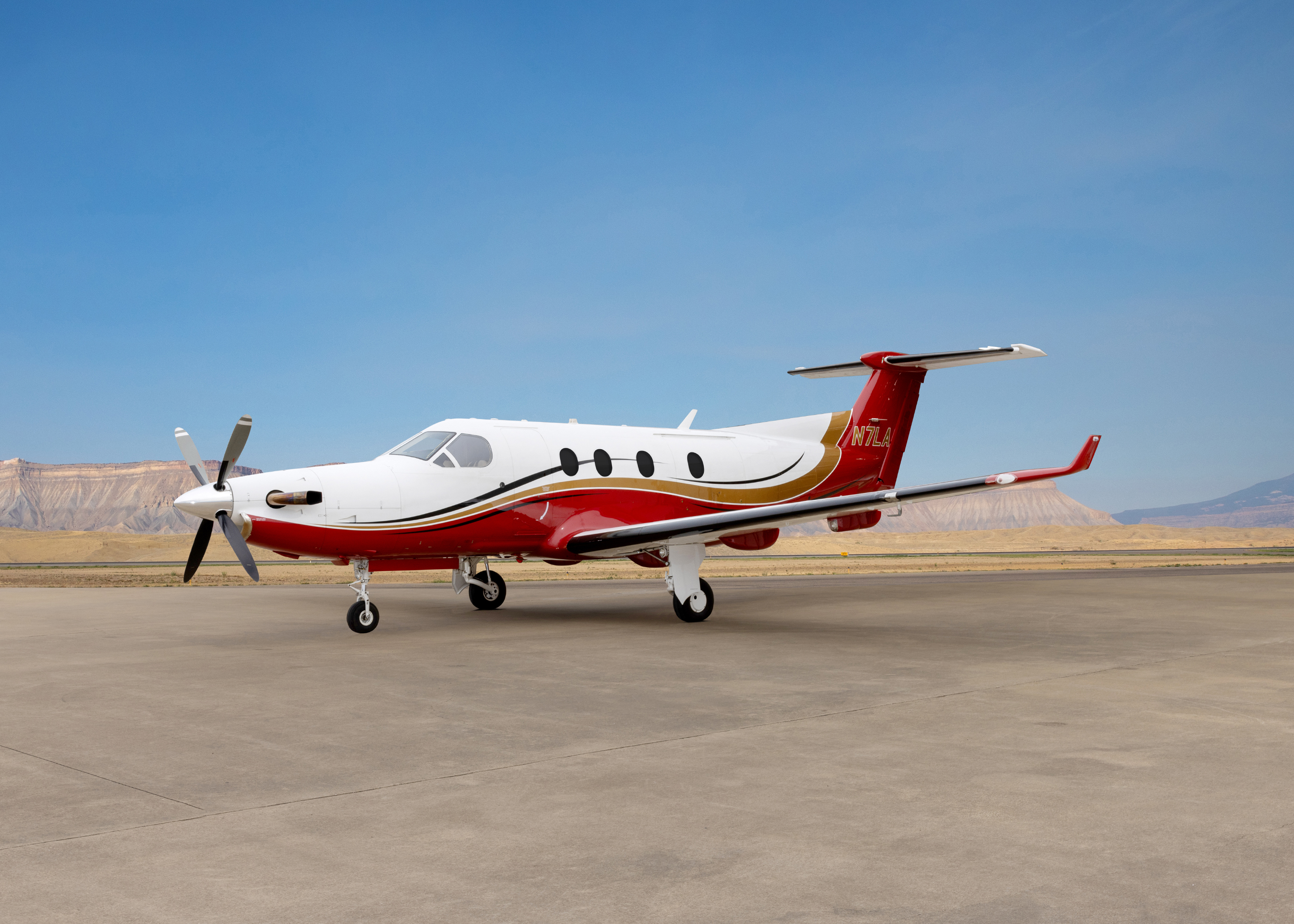

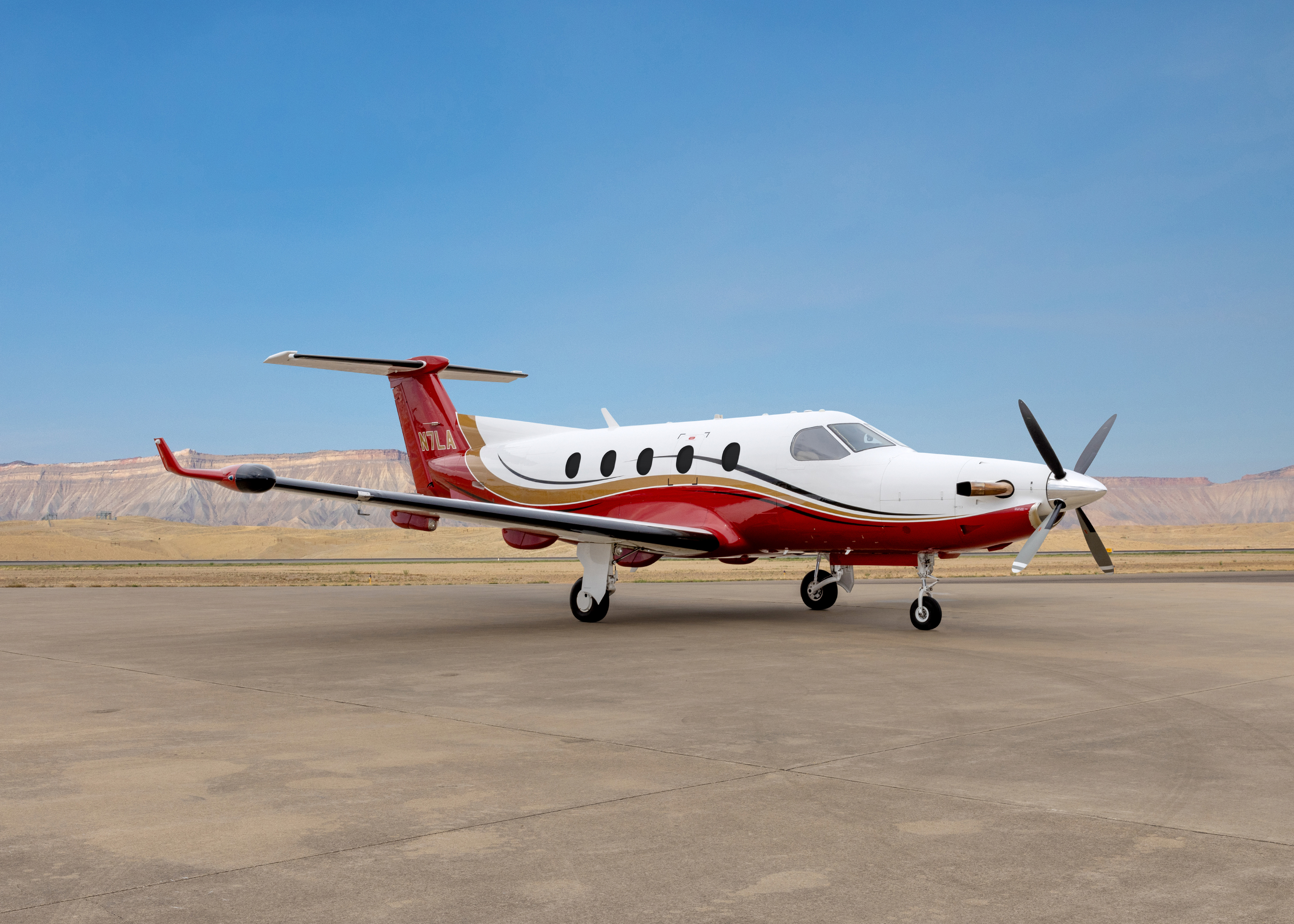

Hold your finger down on the map below. Pinch in/out to zoom the map to see the nonstop range available with the 2005 Pilatus PC-12/45.
Click & Drag the cursor below to see the nonstop range available with the 2005 Pilatus PC-12/45.
These maximum range examples are based on typical cruise speed assuming ISA conditions, 85% statistical annual winds, and standard fuel reserves. The intent is range purposes only, not for actual flight planning. Actual performance is subject to day of flight conditions.
Specs
Download Spec Sheet- Total Time Since New
- 4,693.4 hours
- Total Landings Since New
- 3,500 landings
- Certificate of Airworthiness Date
- February 10th, 2005
- Home Base
- U.S.A.
- Maintenance Tracking
- CAMP
- Certification
- Part 91
- Current Tail Number
- N7LA
| Inspections | Last Performed | Next Due |
|---|---|---|
| Engine Overhaul (3,500 hour) | Due in 2,408.7 hrs | |
| Engine Hot Section (1,750 hour) | Due in 658.7 hrs | |
| Pitch Trim Actuator Overhaul (72 Month) | Mar. 2028 |
Next Annual Inspection Scheduled March 2025 at
Cutter Aviation KAPA (Centennial Airport, CO)
To Include:
- Propeller Overhaul (72 Month)
- Wing De-Mate (120 Month Inspection)
- 24 Month Inspection tasks
| Type of Unit | Description |
|---|---|

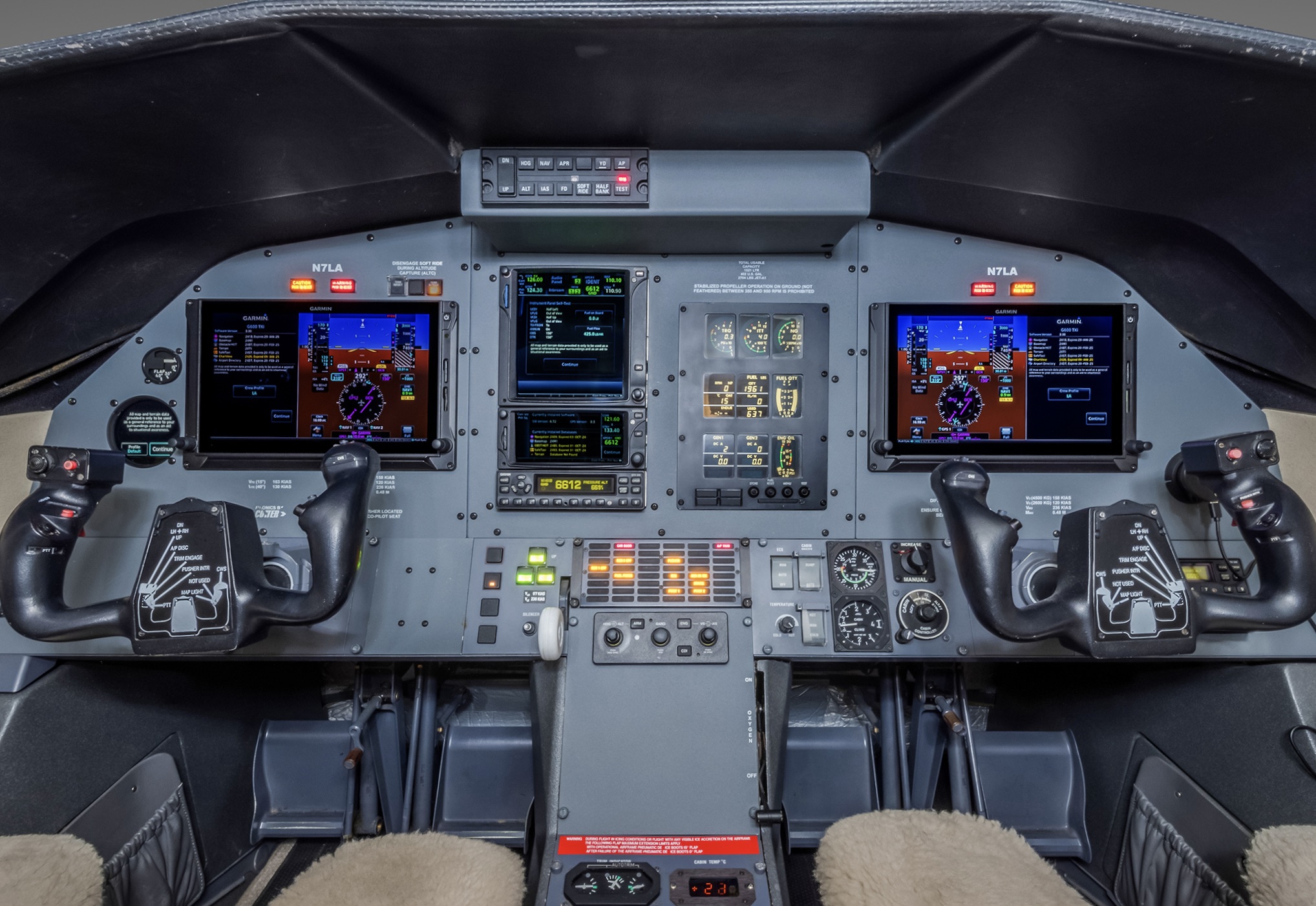

| Dual Garmin G600 TXi Systems: | |
| GDU 1040 PFD/MFD | |
| GSU 75 ADAHRS | |
| GCU 485 PFD Controller | |
| GMU 44 Magnetometer | |
| GTP 58 Temp Probe | |
| Garmin GI 275 Multi-Function Instrument | |
| Garmin GTN 750 (GPS/NAV/COMM/MFD) | |
| Garmin GTN 650 (GPS/NAV/COMM/MFD) | |
| Dual Garmin GTX 330ES Transponders for ADS-B Out | |
| Garmin GDL 69 XM Satellite Datalink Weather System | |
| Garmin GWX 75R Weather Radar | |
| Bendix/King KFC 325 Autopilot | |
| Bendix/King KR 87 ADF | |
| Stormscope WX 1000 |
