Key Features
- U.S. Owned and Operated Since New
- Modern Cosmetics
- ATG-4000 WiFi
- Equipped with Garmin GMX-200 MFD with Charts & XM Weather

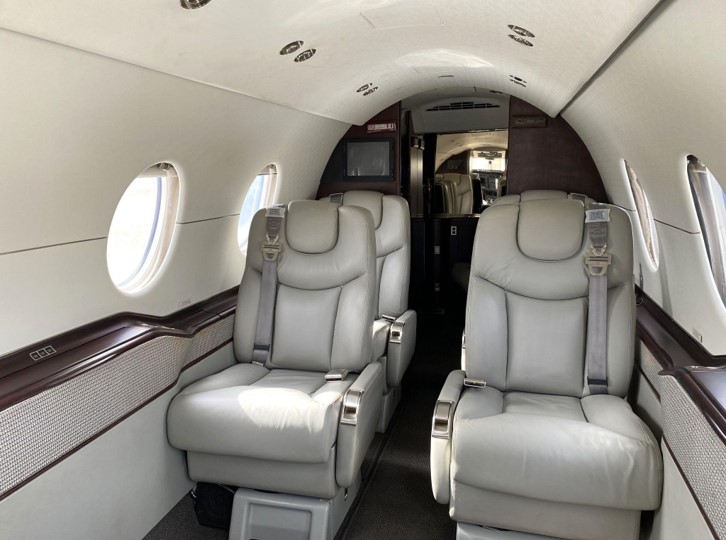

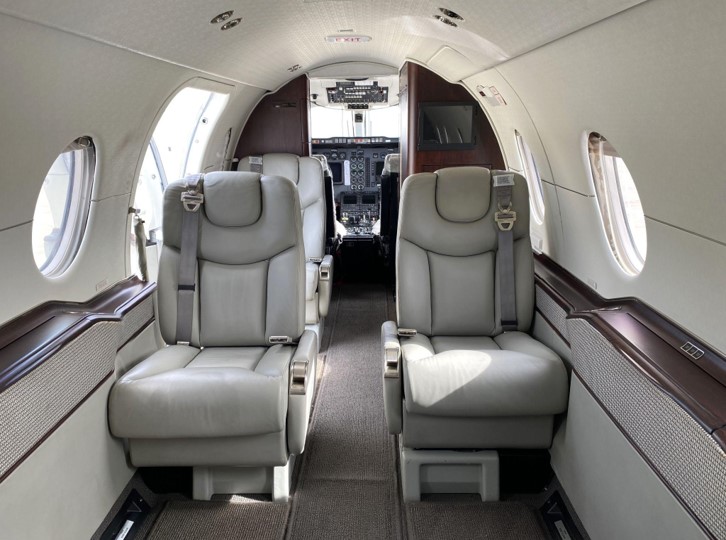

Cabin
- Cabin Length
- 15.60 ft
- Cabin Height
- 4.75 ft
- Cabin Width
- 4.92 ft
- Passengers
- 7
- Cabin Zones
- 1
- Lavatory Locations
- Aft Fully Enclosed Lavatory with Belted Seat
- Galley Location
- Forward Cabin
- Forward Cabin
- Single Aft-Facing Seat
- Mid Cabin
- Four (4) Place Club Configuration
- Aft Cabin
- Two (2) Forward-Facing Seats
- Baggage Capacity
- 47 cu. ft.
- Connectivity
- Aircell GoGo Biz® ATG-4000 High Speed Internet
- Last Refurbished
September 2017
Engines
Engine 1
- Make and Model
- Pratt & Whitney JT15D-5R
- Serial Number
- PCE-JG0075
- Engine Total Time Since New
- 10,501 hours
- Cycles Since New
- 8,039 cycles
Engine 2
- Make and Model
- Pratt & Whitney JT15D-5R
- Serial Number
- PCE-JG0032
- Engine Total Time Since New
- 10,072.6 hours
- Cycles Since New
- 8,929 cycles
Explore the places you can go.
- Total Range
- 1,534 Nautical Miles
Hold your finger down on the map below. Pinch in/out to zoom the map to see the nonstop range available with the 2007 Hawker 400XP.
Click & Drag the cursor below to see the nonstop range available with the 2007 Hawker 400XP.
These maximum range examples are based on typical cruise speed assuming ISA conditions, 85% statistical annual winds, and standard fuel reserves. The intent is range purposes only, not for actual flight planning. Actual performance is subject to day of flight conditions.
Specs
Download Spec Sheet- Total Time Since New
- 5,985.5 hours
- Total Landings Since New
- 4,380 landings
- Certificate of Airworthiness Date
- March 22, 2007
- Home Base
- Elkhart Municipal Airport (KEKM)
- Maintenance Tracking
- CAMP
- Certification
- FAR Part 91
- Current Tail Number
- N76GJ
| Inspections | Last Performed | Next Due |
|---|---|---|
| IFA-A Inspection (12MOS/400 hours) | Oct 2023 | Oct 2024 or 217.8 hours |
| IFA-B Inspection (800 hours) | Dec 2021 | 235.6 hours |
| IFA-C Inspection (1600 hours) | Dec 2015 | 283.9 hours |
| IFA-D Inspection (6400 hours) | N/A | 441.5 hours |
| Engine #1 Overhaul | May 2022 | 2,331.6 hours |
| Engine #2 Overhaul | Jan 2021 | 2,158 hours |
Enrolled on the IFA (Increased Flight Activity)

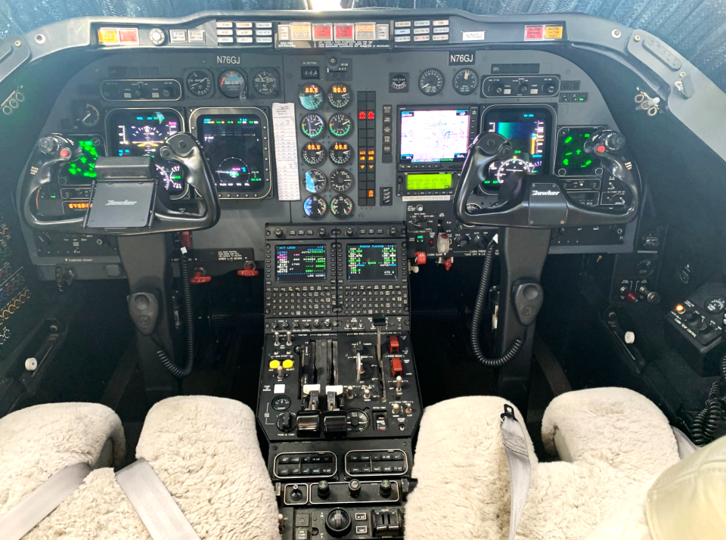

- System
- Collins Pro Line 4
| Type of Unit | Description |
|---|---|
| EFIS (Electronic Flight Instrument System) | Three Collins FIS-870 Displays |
| FMS (Flight Management System) | Dual Collins FMS-5000 |
| GPS (Global Positioning System) | Garmin GPS-400A |
| DAU (Data Acquisition Unit) | Collins DAU-650 |
| ADC (Air Data Computer) | Dual Collins ADC-850D |
| NAV (Navigation Radio) | Dual Collins VIR-432 |
| DME (Distance Measuring Equipment) | Dual Collins DME-442 |
| VHF COM (Very High Freq. Communication) | Dual Collins VHF-422C w/ 8.33 spacing |
| RAD ALT (Radar Altimeter) | Collins ALT-1000 |
| XPNDR (Transponder) | Dual ACSS NXT-600 Transponders |
| TCAS (Traffic Collision Avoidance System) | Collins TTR-4000 TCAS II w/ Change 7 |
| CVR (Cockpit Voice Recorder) | L3 FA2100 |
| ELT (Emergency Locator Transmitter) | Artex C406-2 |
| Multi-Function Display | Garmin GMX-200 |
| Additional GPS (VFR Navigation) | Garmin GPS-150XL |
